PRODUCTS – PRECISION CORES

Key Features and Benefits

  • Cores are used in conjunction with Subrex Reusable Hubs
  • Economical, only wetted path is replaced
  • Ideal for heated applications
  • Reduces time consuming cleaning processes
  • Resists clogging and stringing, improves fluid break-off
  • Greener, less waste by weight for disposal

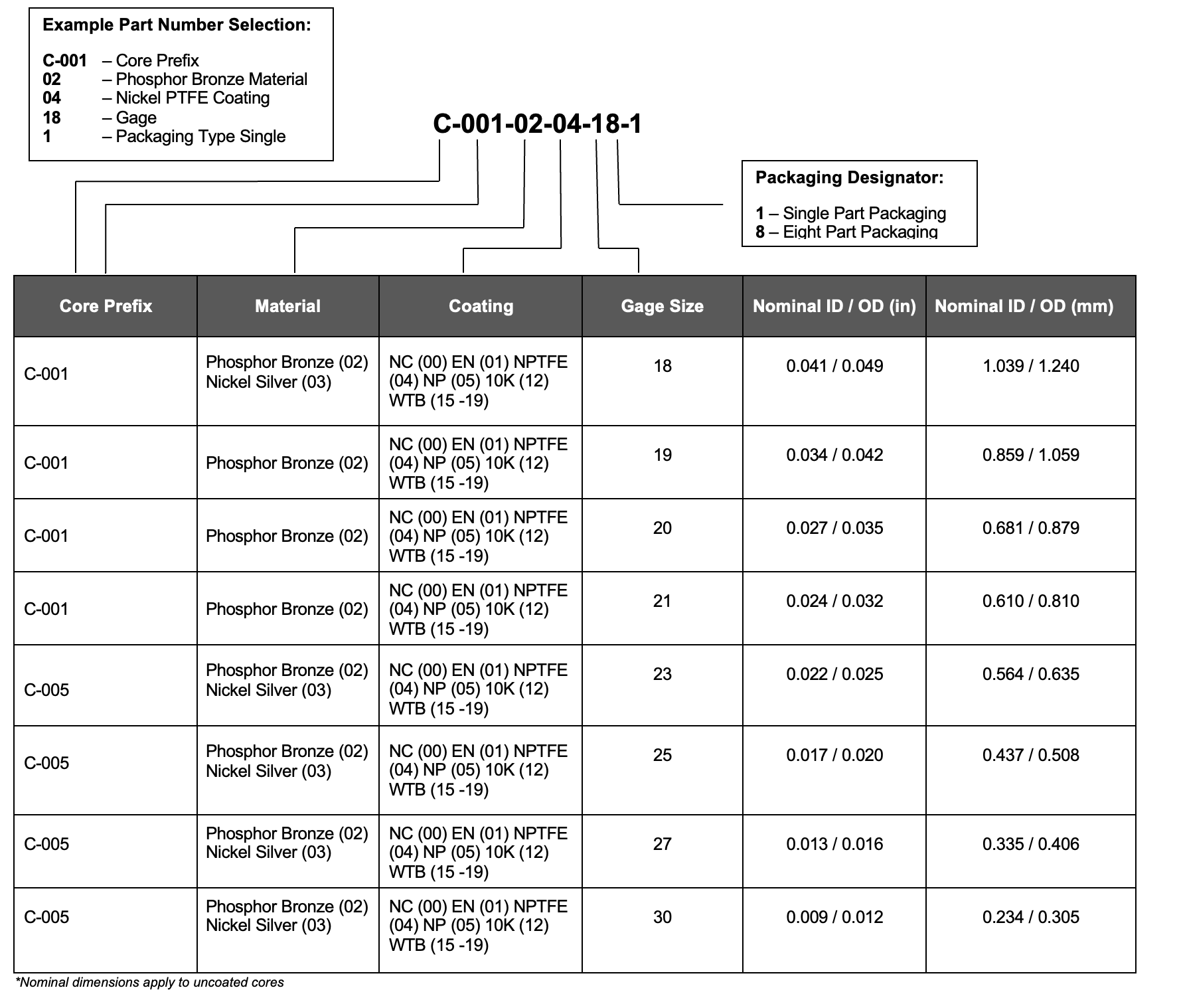

Standard Gage Precision Cores

Material:

Phosphor Bronze
Nickel Silver

UNS C51000
UNS C73500

P/N Designator 02
P/N Designator 03

Coating:

NC
EN
NPTFE
NP
PY

– No Coating
– Electroless Nickel
– Nickel PTFE
– Nickel Polymer Type SLK
– Parylene Type C

P/N Designator 00
P/N Designator 01
P/N Designator 04
P/N Designator 05
P/N Designator 06 *Contact for Availability

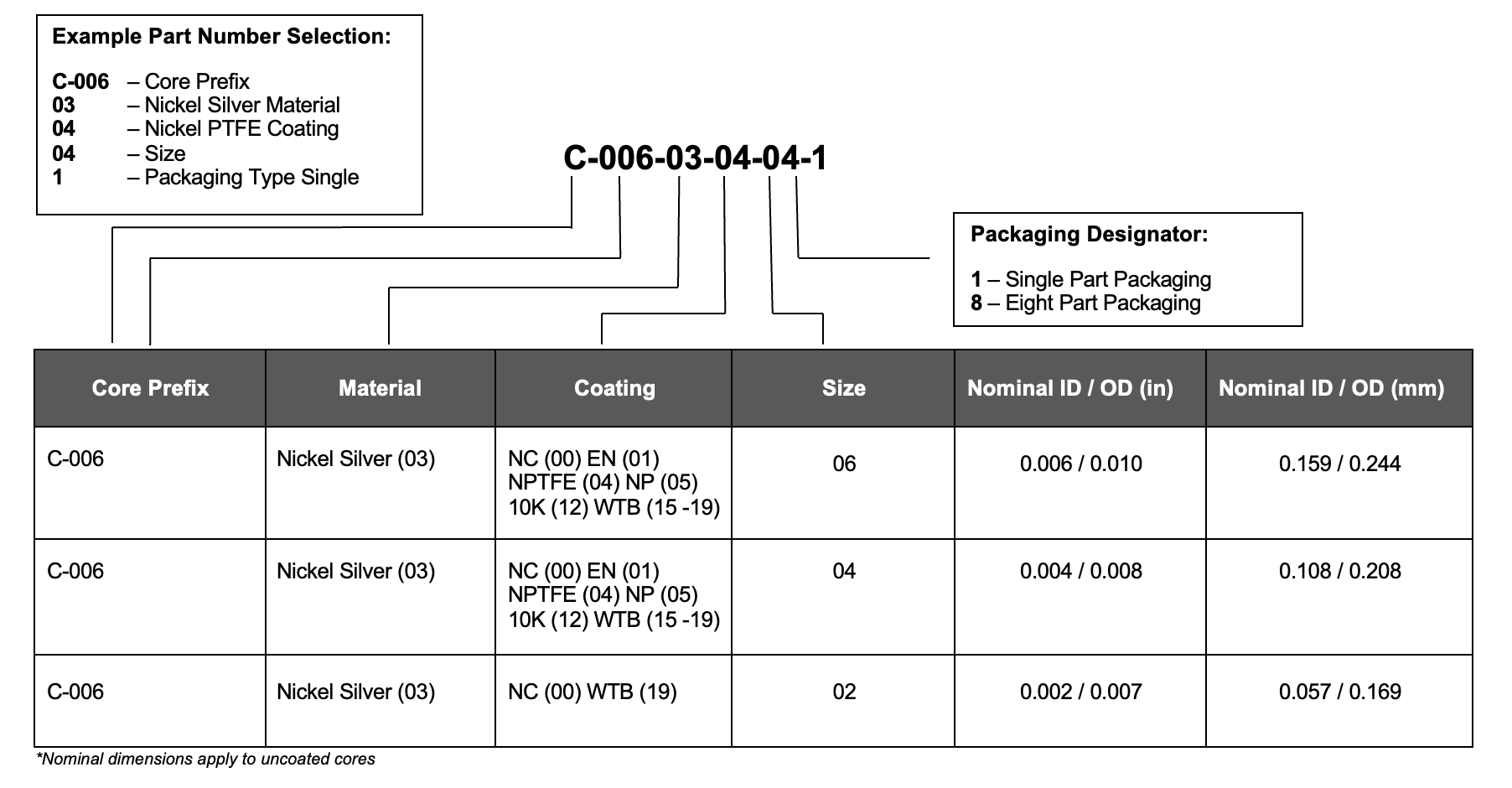

Micro Precision Cores

Material:

Nickel Silver

UNS C73500

P/N Designator 03

Coating:

NC
EN
NPTFE
NP

– No Coating
– Electroless Nickel
– Nickel PTFE
– Nickel Polymer Type SLK

P/N Designator 00
P/N Designator 01
P/N Designator 04
P/N Designator 05

How To Order:

• Email purchase orders to sales@subrex.com
• Call 760•436•1521
